EDIUS Pro 8
EDIUS Pro 8 is nonlinear video editing software that provides high-speed real time editing and smooth operability and enables handling of
data in various camera formats by their native data. Even the newest formats supporting 4K, 60p/50p, and 10‑bit such as XAVC or AVCUltra
can be handled in the native formats without conversion, and you can make use of them for wide range of usage such as broadcasting,
movies, commercial films, documentaries, promotion videos, and personal production. This software provides wide variety of functions
required for high quality video editing, such as multi-format mixed editing, multicam editing, proxy editing, composition, effects, titles, source
management, and Blu-ray/DVD authoring, to enable video finishing that realizes free expression of the editors’ creativity.
Grass Valley HQX Codec
With EDIUS, you can import 4K and 60p videos in their native formats and edit them by frame units. However, editing operations of such
large video data put heavy load on the PC, which may prevent not only smooth editing operations but even normal playback operations,depending on the PC specifications. In such cases, convert the data into an intermediate codec to be suitable for editing and to improve work efficiency. Grass Valley HQX Codec is an intermediate codec that enables the maximum editing performance of EDIUS. It supports 8K /60p/10-bit
at the maximum, and any source can be converted into this codec with the master format retained. Since this codec can be used on both Windows and Macintosh, and supports alpha, it can be utilized for flexible editing in color grading and composition.
The potentiality of the Grass Valley HQX Codec is not limited to editing operations, but it can intermediate between any workflow.
large video data put heavy load on the PC, which may prevent not only smooth editing operations but even normal playback operations,depending on the PC specifications. In such cases, convert the data into an intermediate codec to be suitable for editing and to improve work efficiency. Grass Valley HQX Codec is an intermediate codec that enables the maximum editing performance of EDIUS. It supports 8K /60p/10-bit
at the maximum, and any source can be converted into this codec with the master format retained. Since this codec can be used on both Windows and Macintosh, and supports alpha, it can be utilized for flexible editing in color grading and composition.
The potentiality of the Grass Valley HQX Codec is not limited to editing operations, but it can intermediate between any workflow.
Supported Format
Frame size 24x24 to 8192x4320 (pixels)
Frame rate 60 fps maximum
Depth 8‑bit/10‑bit
Alpha channel Supported
Wrapper QuickTime/AVI/MXF
OS Windows/Macintosh
While conversion into intermediate codec generally deteriorates the video image quality and is avoided in many cases where quality is
important, the Grass Valley HQX Codec can reduce the deterioration to the minimum level and keeps good quality of the master image. Due
to its 4:2:2 color space, VBR that maintains the balance of the quality for the data size even after the compression rate has been changed
to fit the flame images, and its durability for deterioration even after repetitive conversion, it maintains the quality that is high enough for live
events and broadcasting.
Specifications
Color space 4:2:2
Bitrate VBR (7680 MB/s maximum)
Frame compression Intra-frame compression
3 Note
ff Since the Grass Valley HQX Codec uses VBR where the bitrates varies according to the image and thus the data size may increase
depending on the video to be converted, use hard disk drive that is high-speed and with large disk space to a maximum possible.
EDIUS Screen Configuration

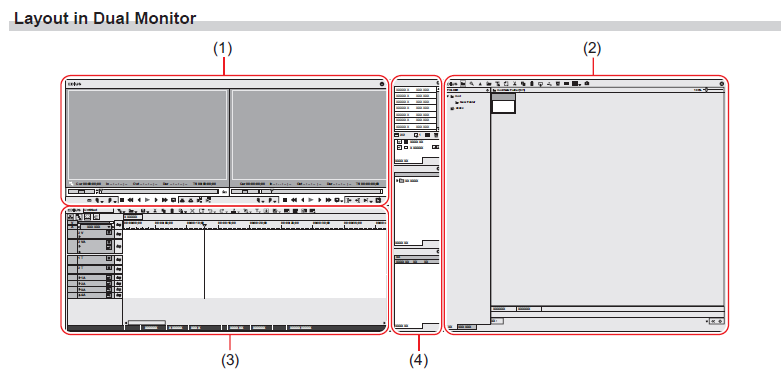

Various windows are displayed when using EDIUS, and basically you use 7 windows for editing video. You can easily edit video in dual
monitor, as each window can be placed without overlapping with each other.
Each window can be resized by dragging its side line or the corner edge. As the windows snap to each other, you can place windows
aligned by side line or corner edge. The window layout can also be saved.
(1) Preview window This window is used to check video. Player appears on the left, and Recorder on the right.
(2) Bin window/source
browser window
Bin window and source browser window can be switched by clicking the tabs.

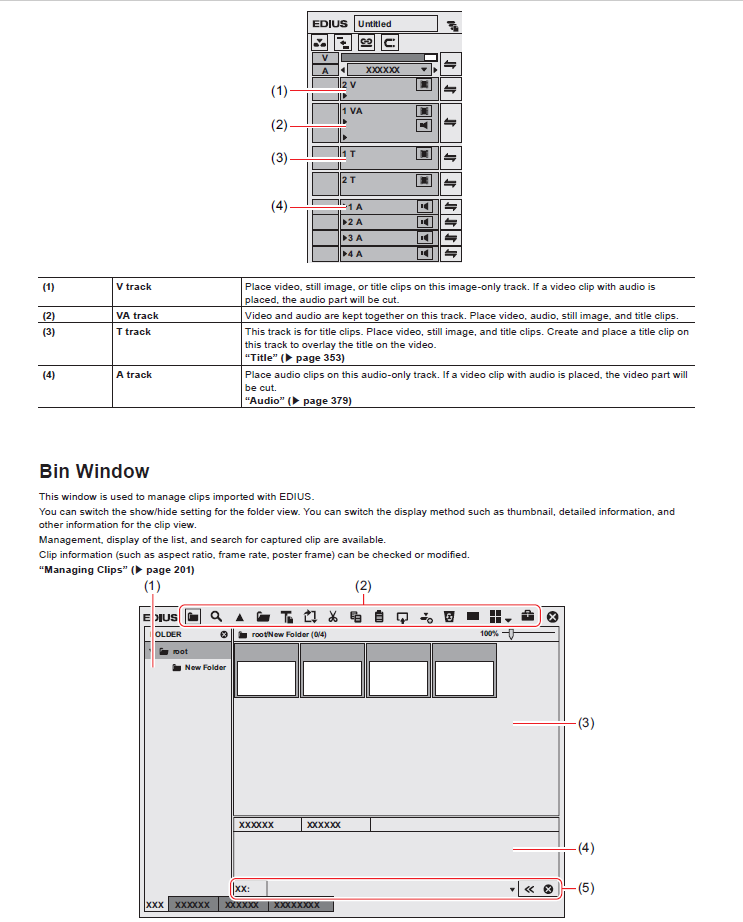

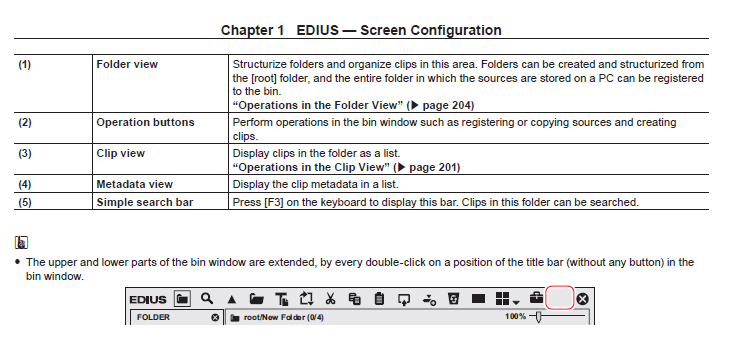

Bin window
This window is used to manage clips imported to EDIUS.

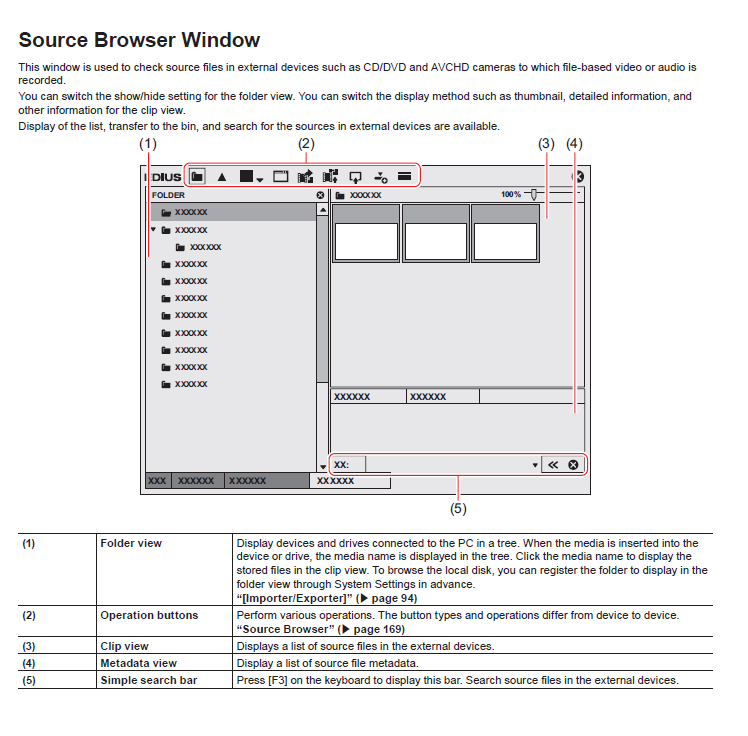

Source browser window
This window is used to check source files in external devices such as CD/DVD and AVCHD
cameras to which file-based video or audio are recorded.

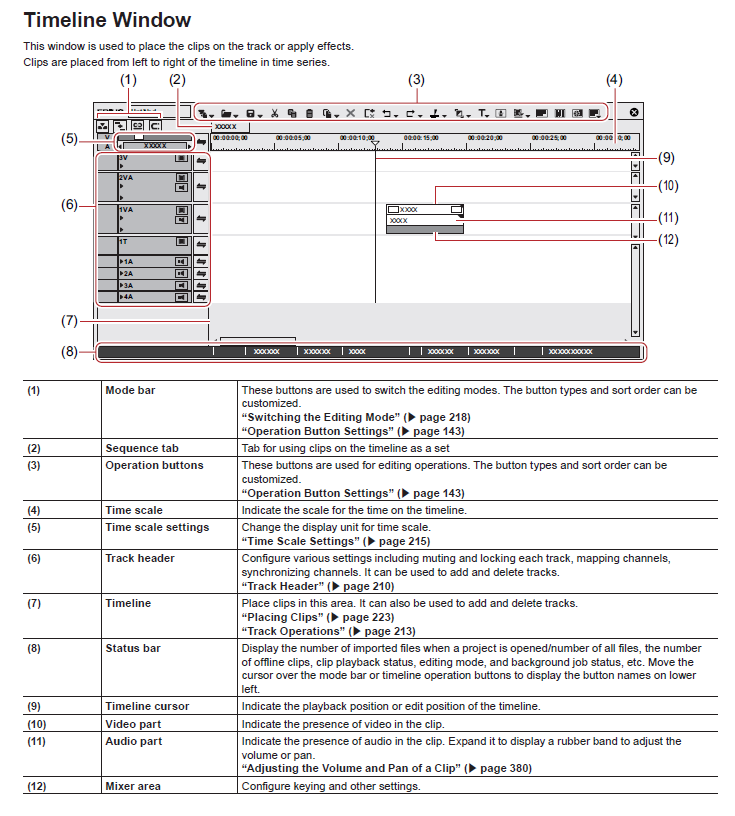

(3) Timeline window This window is used to place the clips on the track or apply effects.

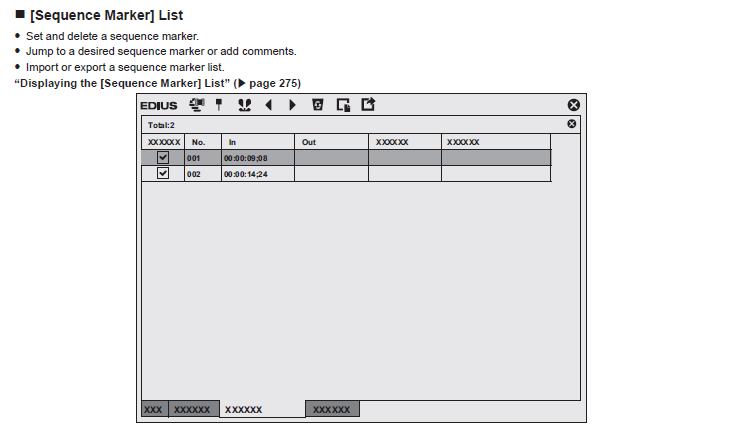

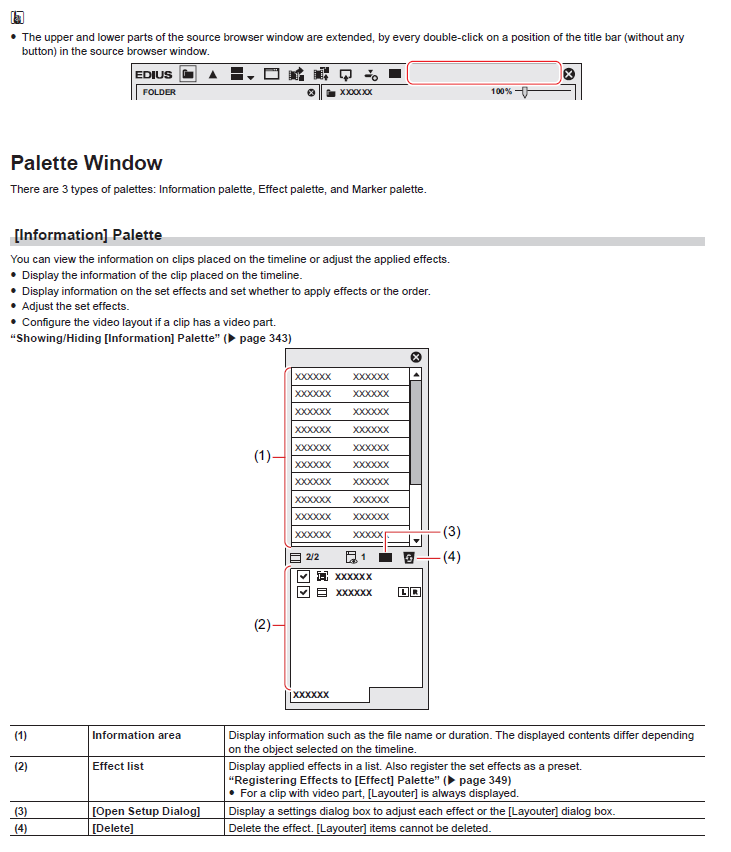

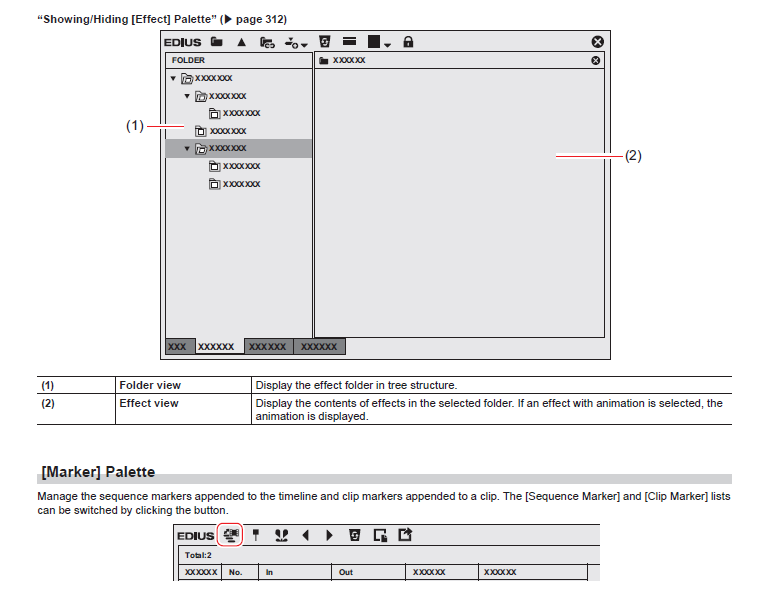

(4) Palette window There are 3 types of palettes: [Information] palette, [Effect] palette, and [Marker] palette.
Preview Window

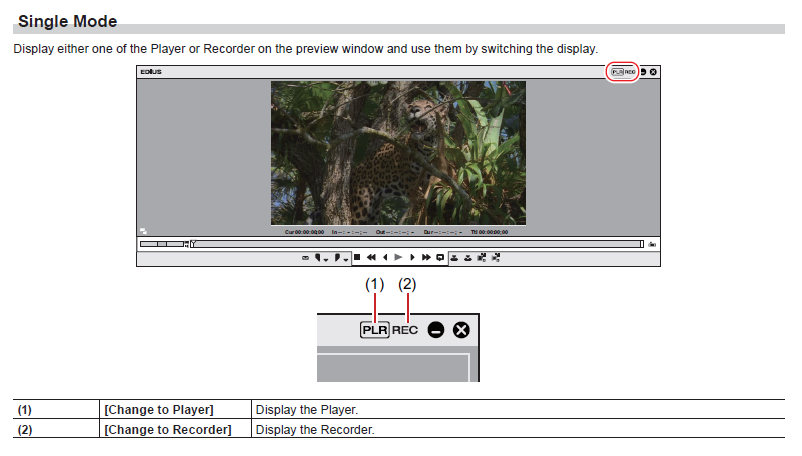

You can switch the preview window between the single mode and dual mode.

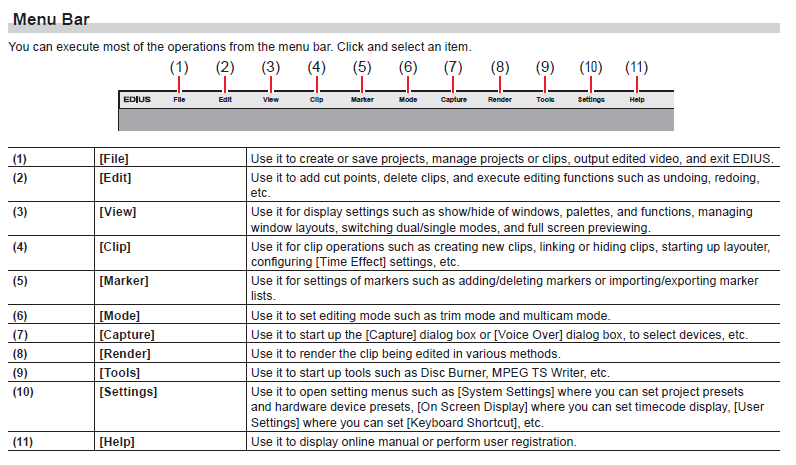

Click [View] on the menu bar, and click [Single Mode] or [Dual Mode] to switch the preview window display between single mode and dual
mode.
- Click [Help] on the menu bar, and click [User Registration] to perform user registration after installation.

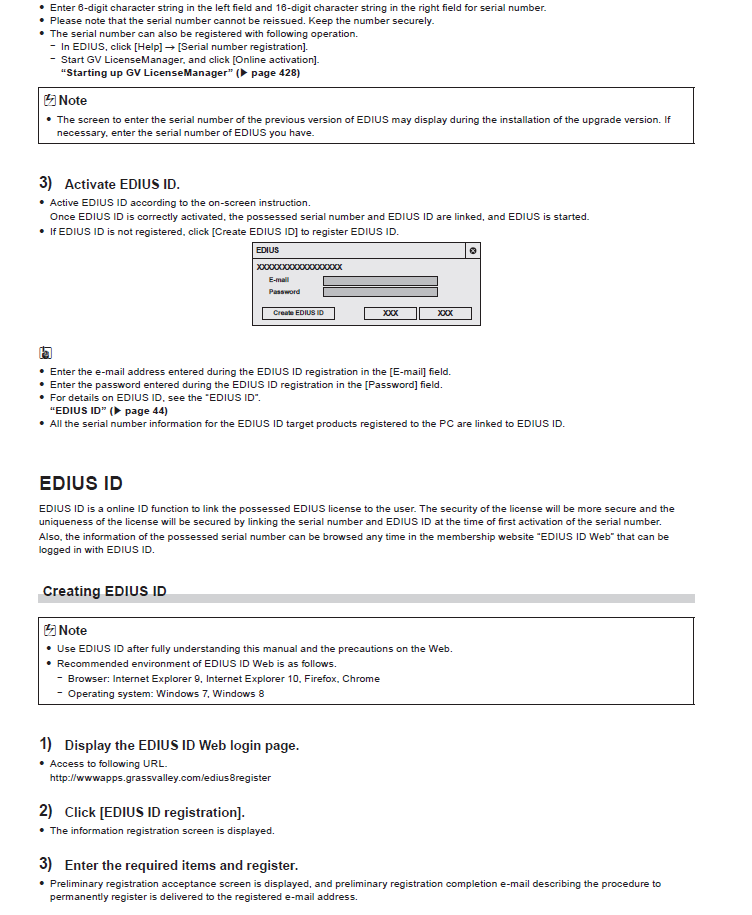

- Click [Help] on the menu bar, and click [Serial number registration] to register the serial number. After registering the serial number,
- restart EDIUS to enable the functions.
- Perform the following to display the online manual:
- Click [Help] on the menu bar, and click [Help].
- Online manual display: [F1]
- Click [Help] on the menu bar, and click [Version Info] to refer to the version information.
